Enterprise-Ready Network Security Solution Overview

The Iron Networks mISAE 2100B is an enterprise grade integrated edge gateway security appliance based on an embedded version of Microsoft Forefront Internet Security and Acceleration (ISA) Server 2006 — Enterprise Branch Edition. It delivers comprehensive, multi-layered defense against threats to networks and Microsoft applications, content acceleration, intuitive management, and scalability - fully integrated, easy to deploy at branch office with turnkey “out of the box” convenience which includes

Unified Gateway Security Solution: One platform which fits all business security needs. Purpose-built, robust, multi-purpose standalone security and content caching solution for small offices to large enterprise deployments, provides single sign-on and seamless Active Directory Service Integration. Support large number of 3rd party ISV add-on security software modules.

Simplified – Branch Office Site-Site Infrastructure, Efficient Management: Centralized CSS management of firewall, VPN, and cache security policies provides unattended branch-office manageability, and branch office deployment automation makes large scale roll-outs a snap.

Secure Web Application Publishing Solution: Securely publish Exchange, OWA, SharePoint or any web application for remote access. Securely extend access to partners, customers, consultants and remote employees to applications, documents, and data from any PC or device from outside the corporate network.

Anywhere VPN Remote Access Solution: Securely extend access to partners, customers, consultants and remote employees to applications, documents, and data from any PC or device from outside the corporate network.

Web Content Filtering Solution: Employee web access control and protection.

Iron Networks Platform Highlights

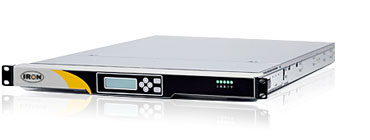

The Iron Networks mISAE 2100B is ideal for Medium to Large Size Branch deployments; it’s a purpose-built, 1U rack-optimized and most competitive security solutions appliance platform in its class. It provides

Solution Key-Features

Appliance Performance

Deployment Type: Medium to Large Size Branch
Recommended Corporate PCs: 2,000
Recommended Corporate Web Users: 10,000
Firewall Throughput (Mbps): 2,400
HTTP Throughput (Mbps): 200
VPN Throughput (Mbps): 200
SSL/IPSec Accelerator Rating (TPS): 17,000 (max)
SSL/IPSec Rating Accelerator (Throughput): 2.5Gbps (max)
TMG Optimized: Yes

Hardware Specifications

LAN Ports (PCIe): 6-GbE
CPU: 1x Intel Xeon Quad Core
CPU Processing Cores: 4 w/8MB Cache
System Memory: 6 GB DDR2 ECC (earlier models w/4GB)
SSL/IPSec Hardware Acceleration: Yes
Hard Disks: 2 x 500 GB, SATA2, Hotswap (earlier model w/250GB)
Hard Disk Redundancy: Yes, RAID-1 Mirroring
Flash Disk (Recovery OS): Yes
LCD Interface w/6-Keypad: Yes, Graphical
Remote (Out of Band) Appliance HW Management: Yes
Power Supply: Single, 560 Watts. 100-240 AC Auto Sensing
Power Redundancy: No
IO Ports (USB / RS232 / VGA): 2 / 1 / 1
Form Factor: 1U, 4-Post Rack (rails incl)
Dimensions (H x W x D): 1.75 x 17 x 25 (inch)

Iron Networks Integrated Appliance "Turnkey" Solutions

Network Edge Security is a critical business function. Trust Iron Networks to deliver reliable and comprehensive solutions. Iron Networks is an ISO 9001:2000 certified manufacturer. The Iron Networks Net-Gateway mISAE appliances are engineered and manufactured to exacting quality specifications. The mISAE product line is one of a family of integrated network security and application acceleration appliances.

** (09/21/2009), TMG Enhanced platforms includes additional RAM and larger size hard disks. Models 2100 and above, requires TMG upgrade w/Windows 2008R2 support to utilize memory size larger than 4GB
